EG4-12kW Mod. 18Kpv + EG4-PowerPro WallMount Batteries from 14.3kW to 42.9kW + Certification for Net Metering Program + Professional Installation

Choose PV Capacity from 4.30KW to 12.90KW with Philadelphia Solar Panels

Want more Battery Capacity? Simply add additional PowerPro Batteries, Conduit Boxes, and Paralelling Cables

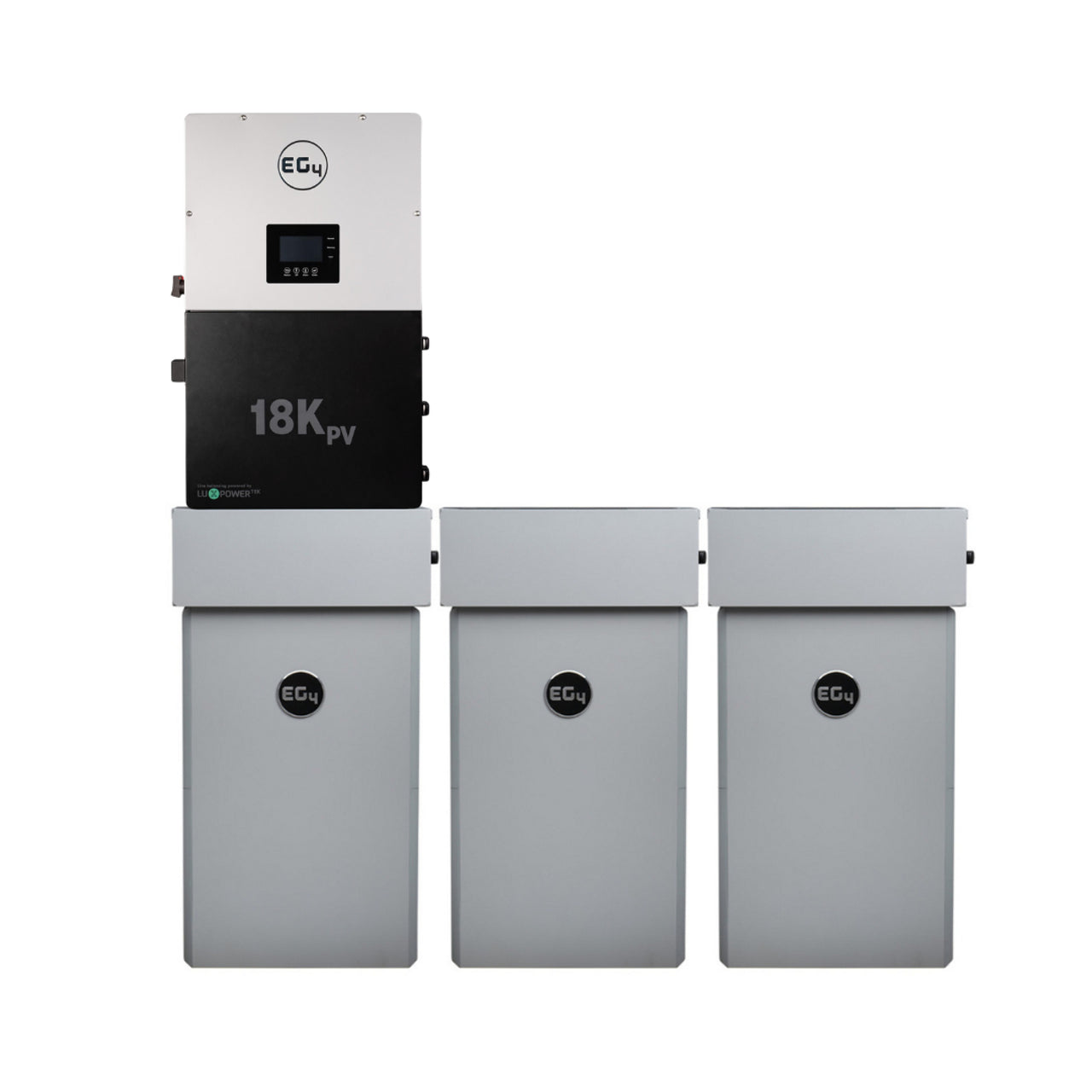

Introducing the EG4 PowerPro ESS  - A groundbreaking solution that brings together the capabilities of the EG4 18kPV All-In-One Hybrid Inverter and the EG4 PowerPro 14.3kWh Battery. Thanks to a modular design and integrated conduit box, this uniquely tailored kit seamlessly integrates advanced inverter technology and cutting-edge battery solutions, empowering you to harness, manage, and store solar energy specific to your needs.

Features:

Unmatched Performance

• Over 8000 cycles at 80% depth-of-discharge for a lasting energy solution
• Harness up to 12,000W continuous output with the EG4 18kPV inverter
• Closed-loop communication ensures precise energy coordination
• EG4 PowerPro 14.3kWh Battery delivers uninterrupted power
• Stack multiple EG4 18kPV units for enhanced power capacity

Enhanced Safety

• EG4 PowerPro features integrated self-heating for low-temperature resilience
• Perfect for outdoor applications, built to withstand various weather conditions
• Innovative total emergency stop function for safety and compliance
• Benefit from a 10-year warranty provided by EG4 Electronics
• Dual onboard fire arrestors ensure fail-safe protection

Streamlined Management

• EG4 18kPV eliminates the need for charge controllers or transformers
• Enjoy plug-and-play installation for immediate energy access
• Conduit box helps facilitate future system upgrades easily
• User-friendly LCD interface for intuitive system monitoring
• Manage energy from storage and grid simultaneously

Achieve Scalability

When relying on the internal integrated busbars, up to 3 batteries are supported in parallel when connected to a single inverter or 4 batteries in parallel when connected to 2 inverters, or up to 5 batteries in parallel when connected to 3 inverters. See section 8.2 in the PowerPro manual for more information.

Includes:

• EG4 PowerPro WallMount AllWeather Lithium Battery | 48V 280Ah | 14.3kWh LiFePO4 | All-Weather Energy Storage | UL1973, UL9540A

• EG4 18KPV Hybrid Inverter | All-In-One Solar Inverter | 18000W PV Input | 12000W Output | 48V 120/240V Split Phase | EG4-18KPV-12LV

• EG4 PowerPro Conduit Box

• For 2x Option: EG4 PowerPro Battery Paralleling Cables

Comprehensive Certifications

The EG4 18kPV is ETL & cETL certified and complies with national and international standards for safety and reliability when connected to the grid.

• Safety - UL1741SB Rule 21, RSD NEC 2020:690.12, AFCI NEC 2020:690.11 / UL1699B, GFDI NEC 2020:690.41(B), CSA 22.2.107.1, CSA 22.2.330

• EG4 PowerPro ESS holds UL9540 level certification
• Grid connection - IEEE 1547.1:2020;IEEE 1547:2018, Hawaii Rule 14H, California Rule 21 Phase I, II, III

• EMC - FCC Part 15 Class B
• Outdoor Rating - NEMA 4X / IP65
• CEC Solar Equipment Listing

***If you've purchased an EG4 18kPV Inverter through Signature Solar, be sure to use the customer code 'Signature' when setting up the monitoring system!

Systems with more batteries than these configurations are still possible (Such as the 5:1 configuration pictured above). But, require the use of an external fused positive busbar and an unfused negative busbar rated at a minimum of 200A per battery. Each fuse should be a maximum of 250A. Alternatively, larger systems could rely on the 18kPV’s ability to draw from different battery packs while still paralleling inverters rather than utilizing external busbars.

The PS-MNB108(HCBF) series represents the pinnacle of solar technology. Designed for exceptional efficiency, durability, and reliability, these half-cell, N-type, bifacial modules are tailored to meet the needs of both residential and commercial solar installations.

Key Features:

• Outstanding Performance: Delivers 430W power output with positive tolerance (0 ~ +3%), ensuring maximum efficiency even under challenging conditions.

• Exceptional Durability: Engineered to withstand high mechanical loads, including 5400 Pascal on both front and back surfaces.

• High Reliability: Features anti-PID technology for enhanced long-term performance, backed by a 30-year linear power warranty with only 0.4% annual degradation.

• Innovative Design: Half-cell architecture ensures less current mismatch, maximizing power output under partial shading.

• Weather Resistance: Resistant to dust, sand, ammonia, and salt mist, making it ideal for diverse environments.

• Certified Quality: Meets international standards, including IEC 61215 / IEC 61730 and UL 61215 / UL 61730.

Wattage:  430W

VOC:  38.42

VISC:  14.13

ACell Type: MonocrystallinePanel

Dimensions:  67.8 x 44.6 x 1.18 in
